All-wheel drive Rider with smart collection system and easy emptying

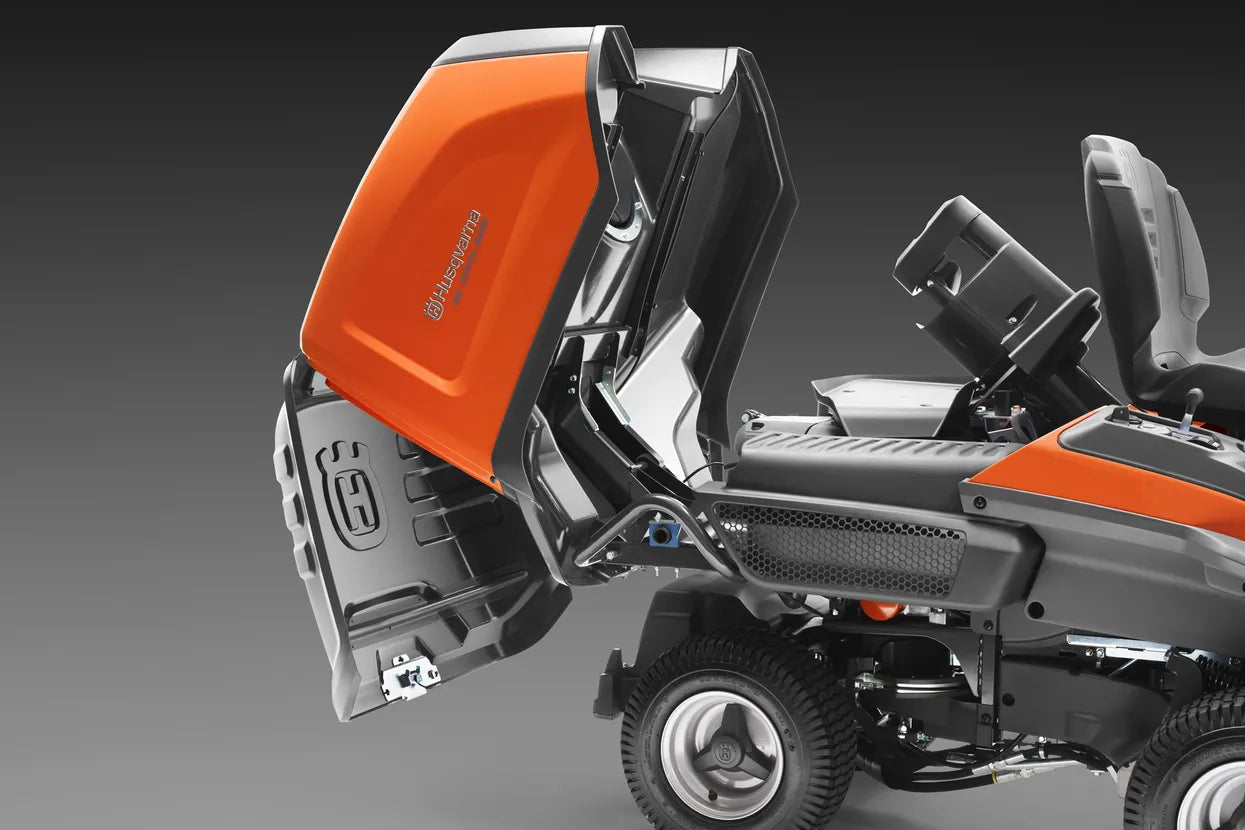

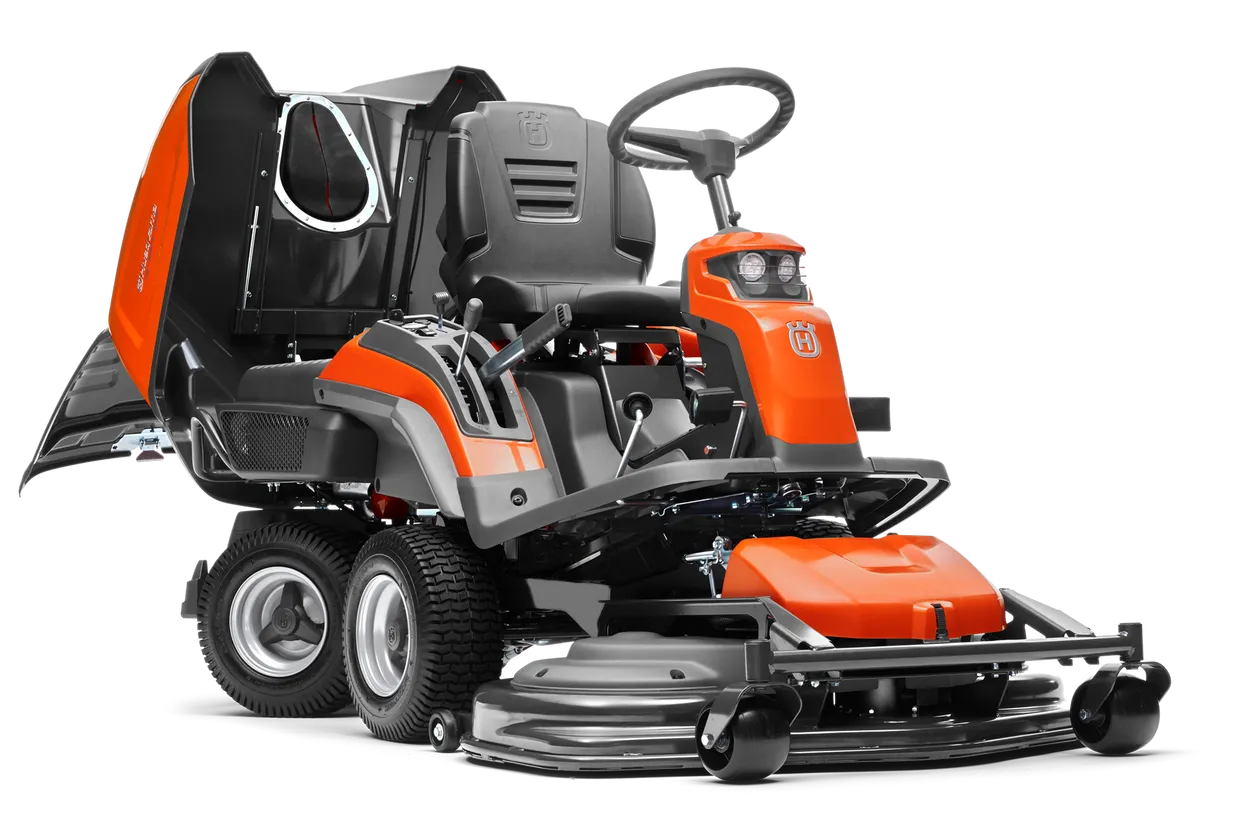

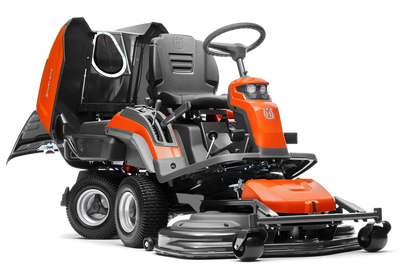

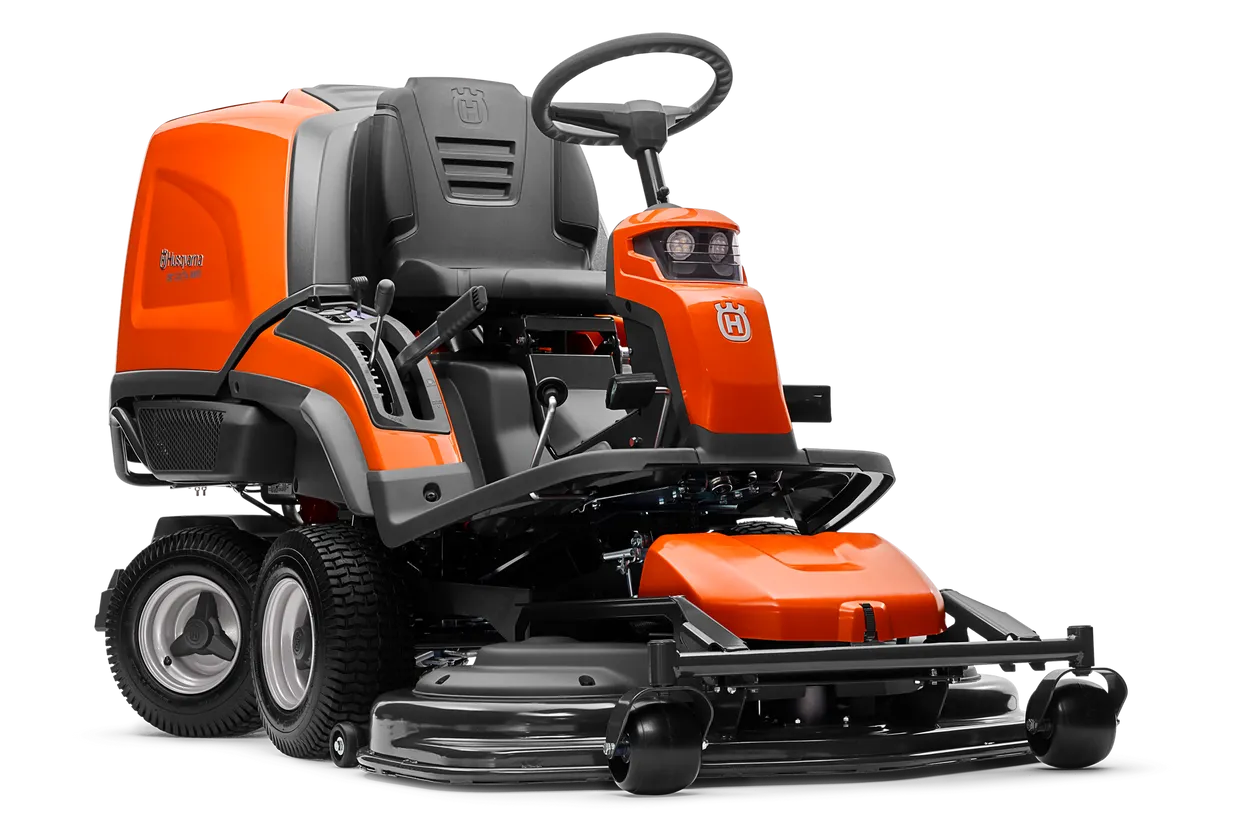

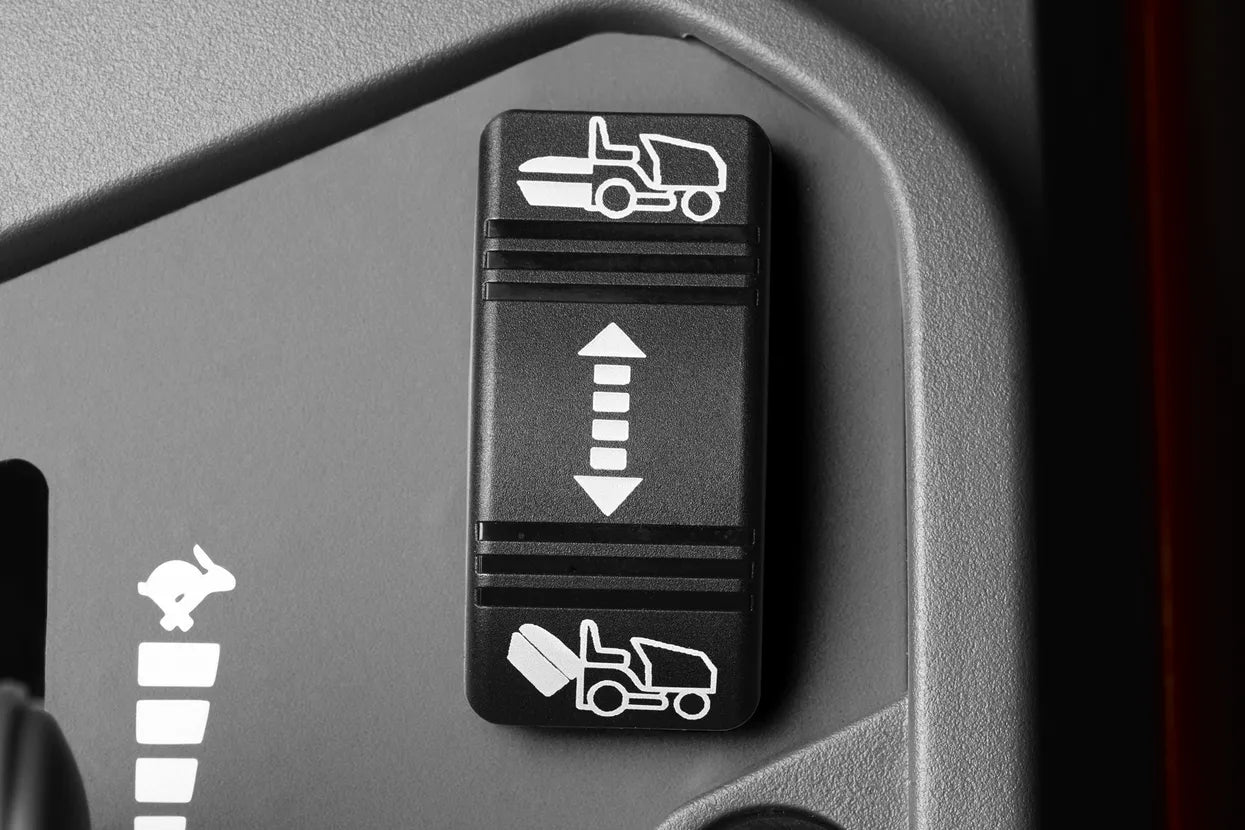

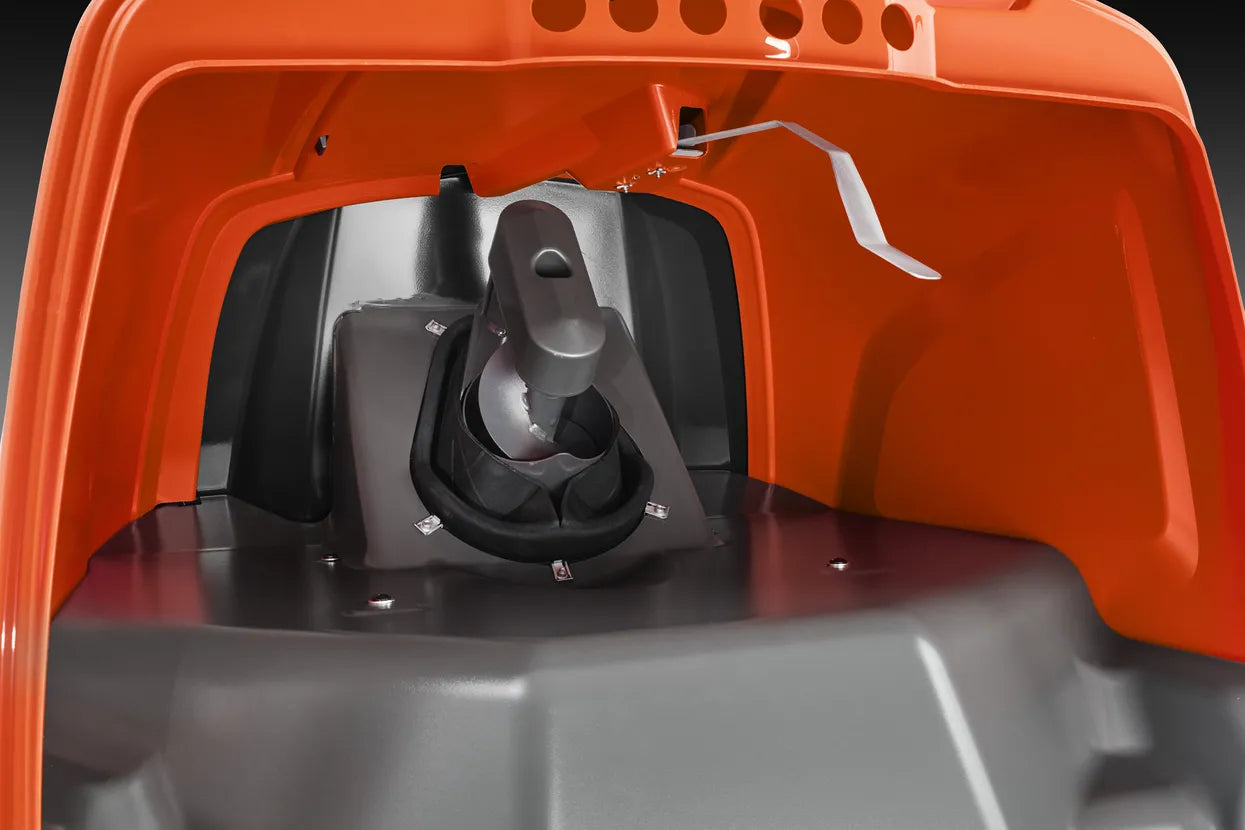

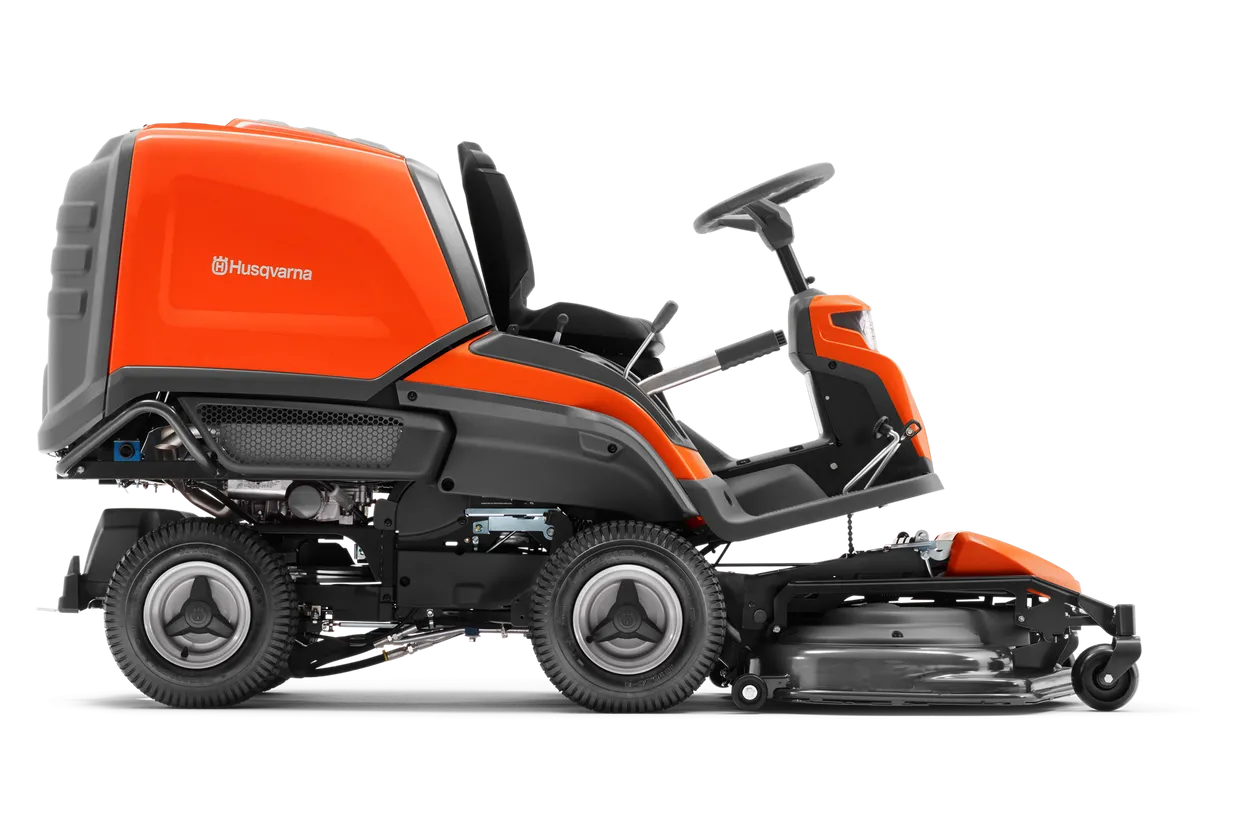

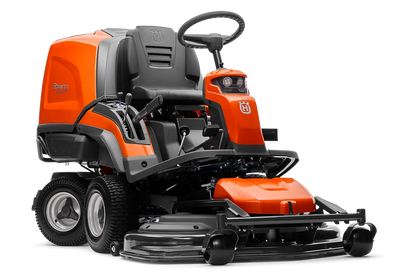

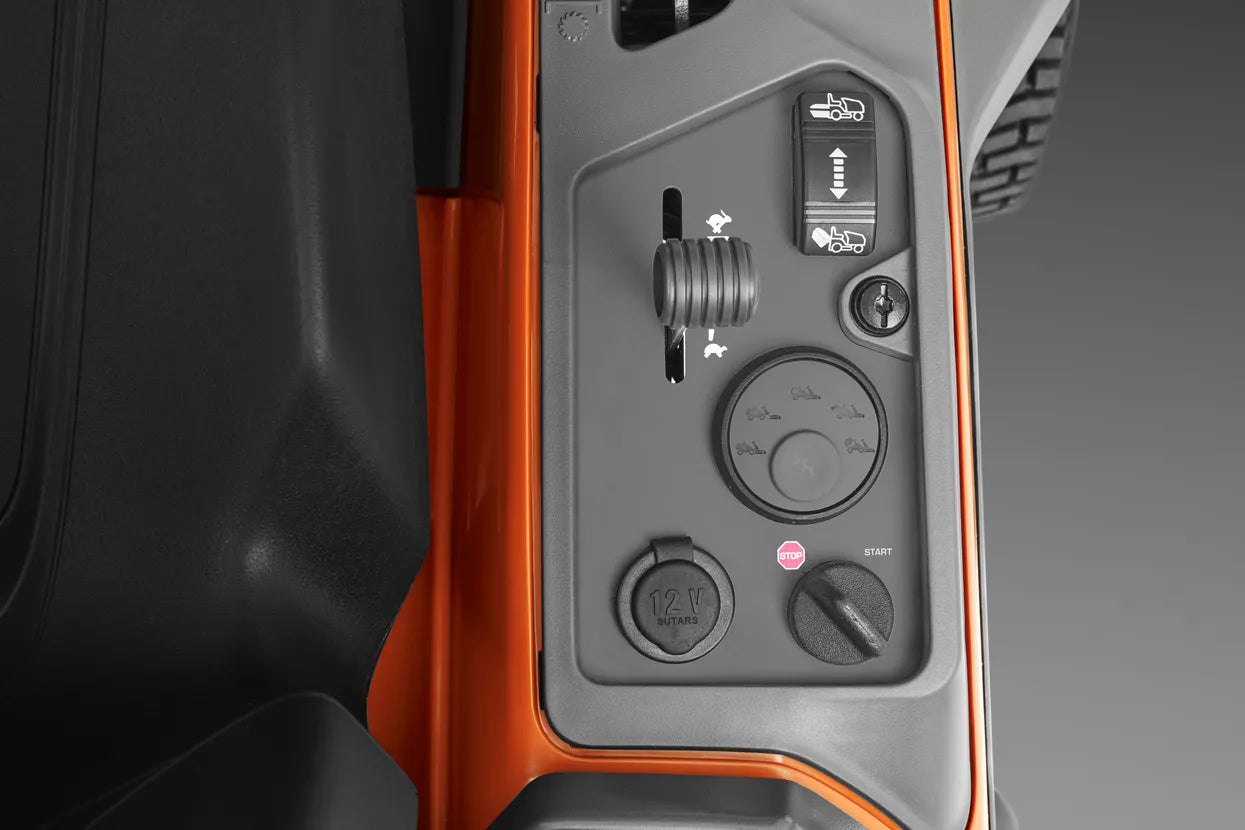

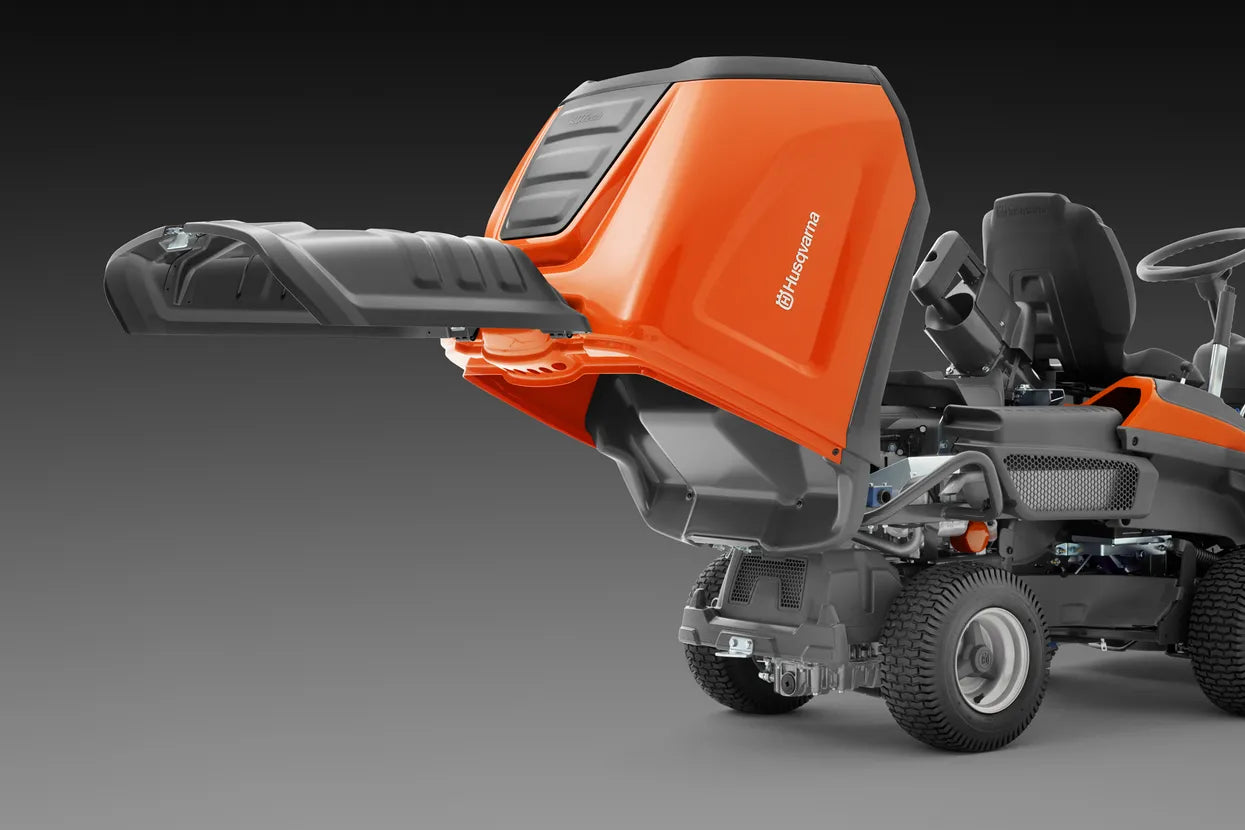

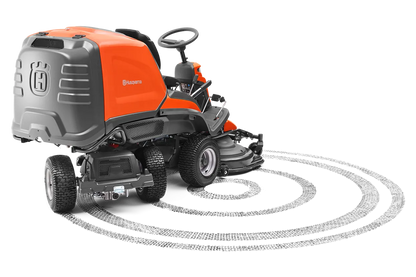

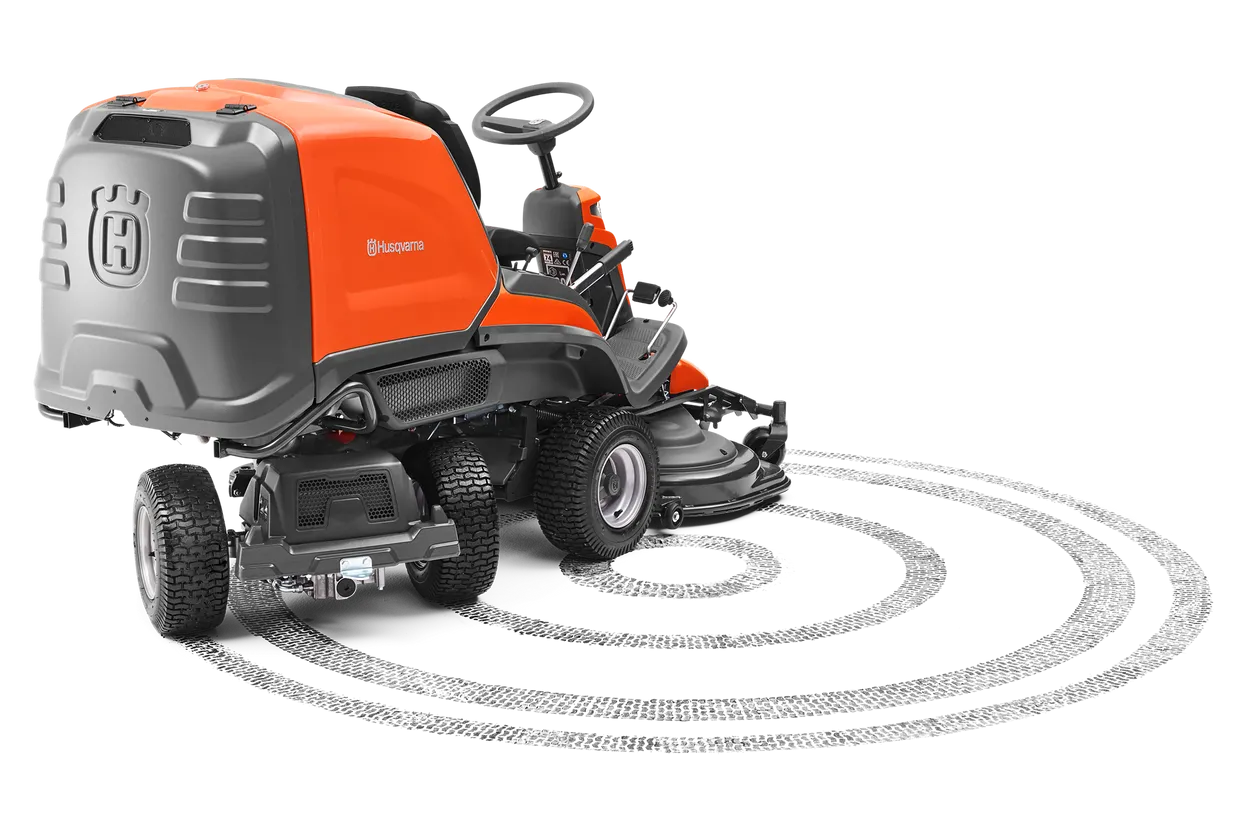

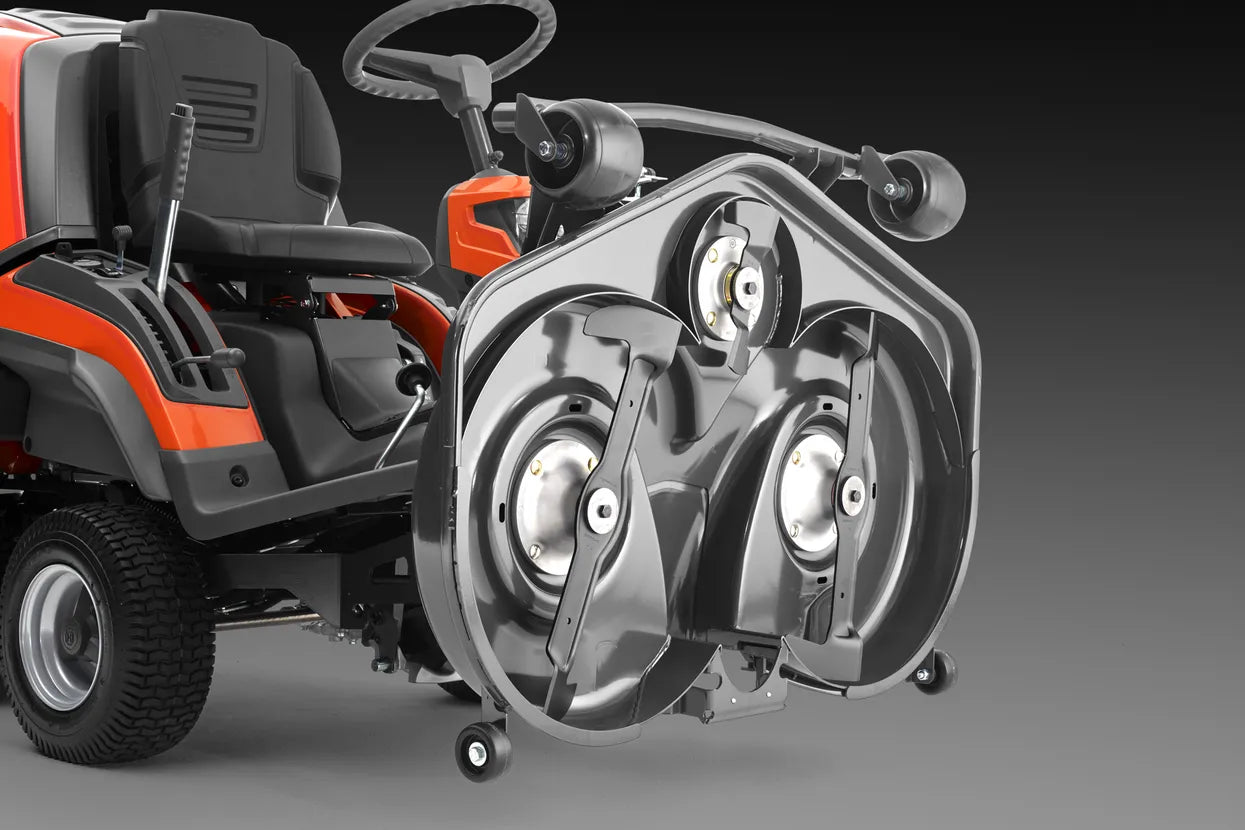

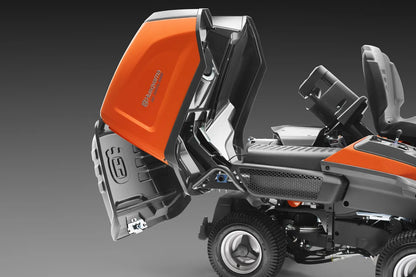

Husqvarna Rider RC 320Ts AWD offers all-wheel drive and high collection capacity to mow large gardens. The ride-on lawn mower has an innovative clog-free collection system that feeds the grass clippings directly from the front-mounted cutting deck into the 300-litre bag. Automatic compaction allows more grass in the collector, so you can drive longer before emptying. Cutting height adjustment and emptying can be performed without getting off the machine, contributing to both comfort and efficient work. All-wheel drive provides the power needed to manoeuvrein all types of conditions, and with articulated powered steering, the RC 320Ts can also handle tight turns. The cutting deck can be tilted 90 degrees to be easily accessible for service and cleaning.
Engine
RC 320Ts AWD with 103cm Combi Deck
Art no: 967 62 88‑11
RC 320Ts AWD with 112cm Combi Deck
Art no: 967 62 88‑14
Power/fuel type
Petrol
Petrol
Net power at preset rpm Energy
1
12.6 kW
12.6 kW
Net power at preset rpm
3,100 rpm
3,100 rpm

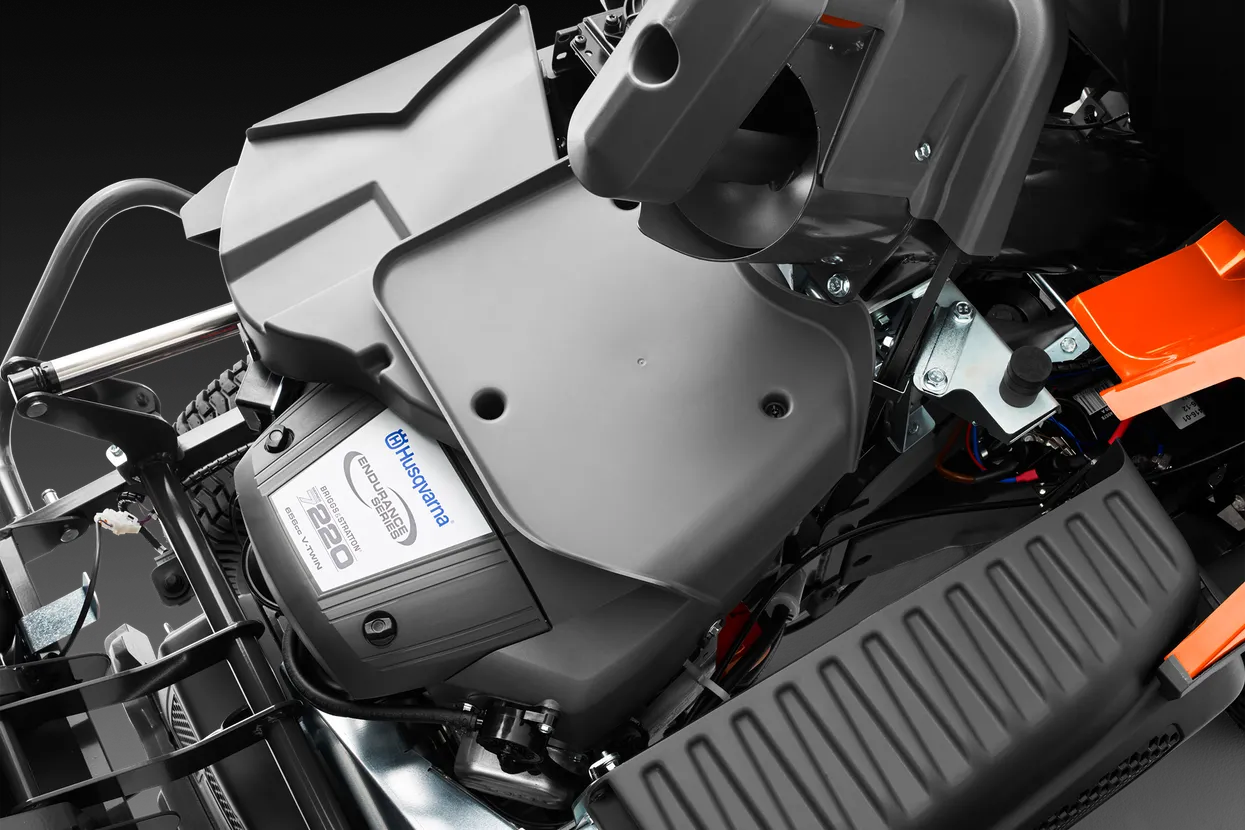

Engine brand
Briggs & Stratton
Briggs & Stratton
Motor/engine manufacturer
Briggs & Stratton
Briggs & Stratton
Engine name
Endurance Series
Endurance Series
Cylinder displacement
656 cm³
656 cm³
Cylinders
2
2
Engine cooling
Air
Air
Engine lubrication type
Full pressure
Full pressure
Oil filter
Yes
Yes
Emission
Exhaust emissions (CO₂ EU V)
2
830 g/kWh
830 g/kWh
Battery
Battery capacity
5.5 Ah
5.5 Ah
Battery type
Li-Ion
Li-Ion
Battery pack weight
1.1 kg
1.1 kg
Battery manufacturer
BMZ
BMZ

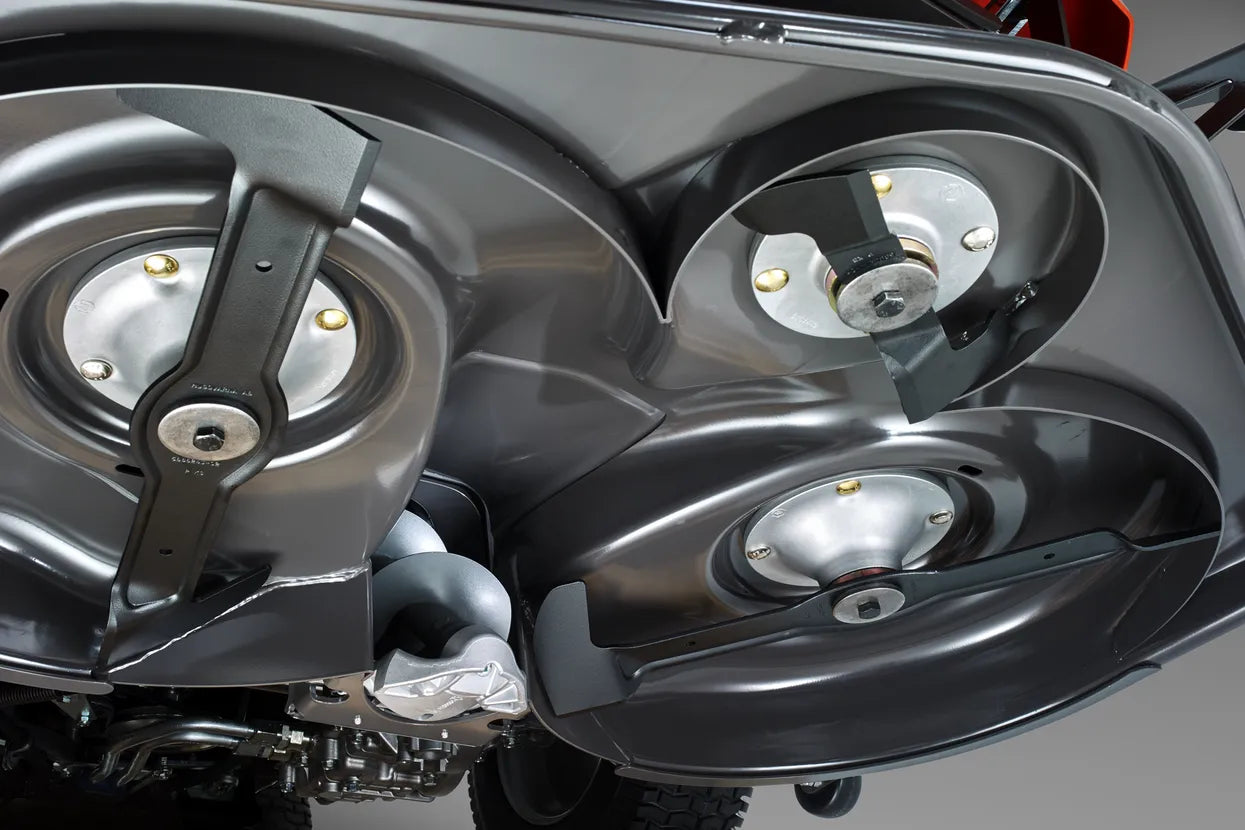

Cutting deck
Uncut circle
60 cm
60 cm
Cutting width, min
103 cm
103 cm
Cutting width, max
112 cm
112 cm
Cutting height min
25 mm
25 mm
Cutting height max
75 mm
75 mm
Blade engagement
Automatic
Automatic
Collector volume
300 l
300 l
Dimensions
Tyre dimensions, front
16x6,5-8
16x6,5-8
Tyre dimensions, rear
16x6,5-8
16x6,5-8
Wheelbase
90.3 cm
90.3 cm
Ground clearance
90 mm
90 mm
Base machine, length
208.9 cm
208.9 cm
Base machine, width
103 cm
103 cm
Base machine, height
128.4 cm
128.4 cm
Weight (excl. cutting equipment)
328 kg
328 kg
Drive system
Transmission type
Hydrostatic
Hydrostatic
Transmission manufacturer, rear
Tuff Torq
Tuff Torq
Drive method
Dual pedal-operation
Dual pedal-operation
Speed forward max
8 km/h
8 km/h
Speed reverse max
7 km/h
7 km/h
Transmission manufacturer, front
Tuff Torq
Tuff Torq
Transmission model, front
KTM13T
KTM13T
Transmission model, rear
K664M
K664M
Equipment
Seat suspension
Yes
Yes
Hour meter type
Digital
Digital
Seat material
PU
PU
Seat back height
High
High
Foldable seat
Yes
Yes
Parking brake, type
Disc
Disc
Vibration
Vibration level steering wheel
2.6 m/s²
2.6 m/s²
Vibration level seat
0.7 m/s²
0.7 m/s²
Sound and noise
Sound pressure level at operators ear
85 dB(A)
85 dB(A)
Sound power level, guaranteed (LWA)
100 dB(A)
100 dB(A)
Sound power level, measured
99 dB(A)
99 dB(A)
This Item is available only by special order. Please send us a message via our Contact form or call us at (03) 5134 8899
