Engine

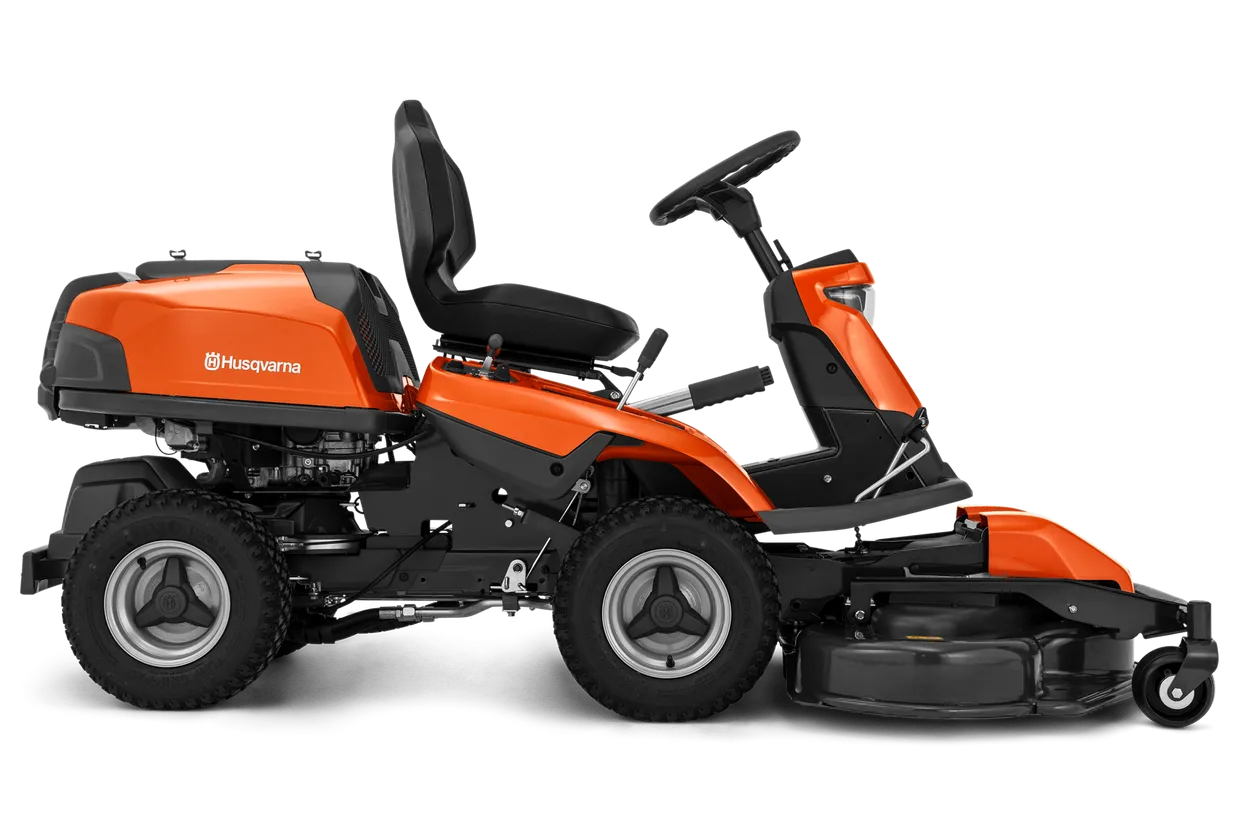

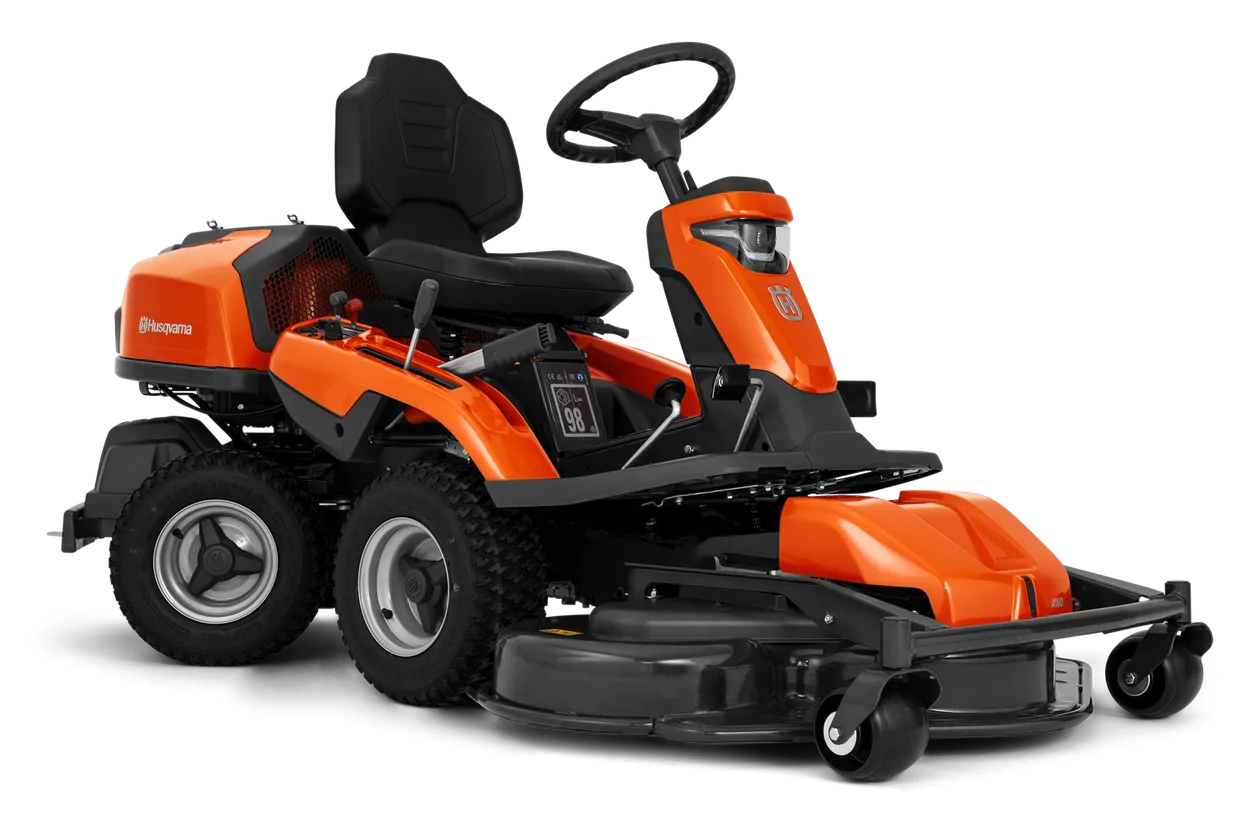

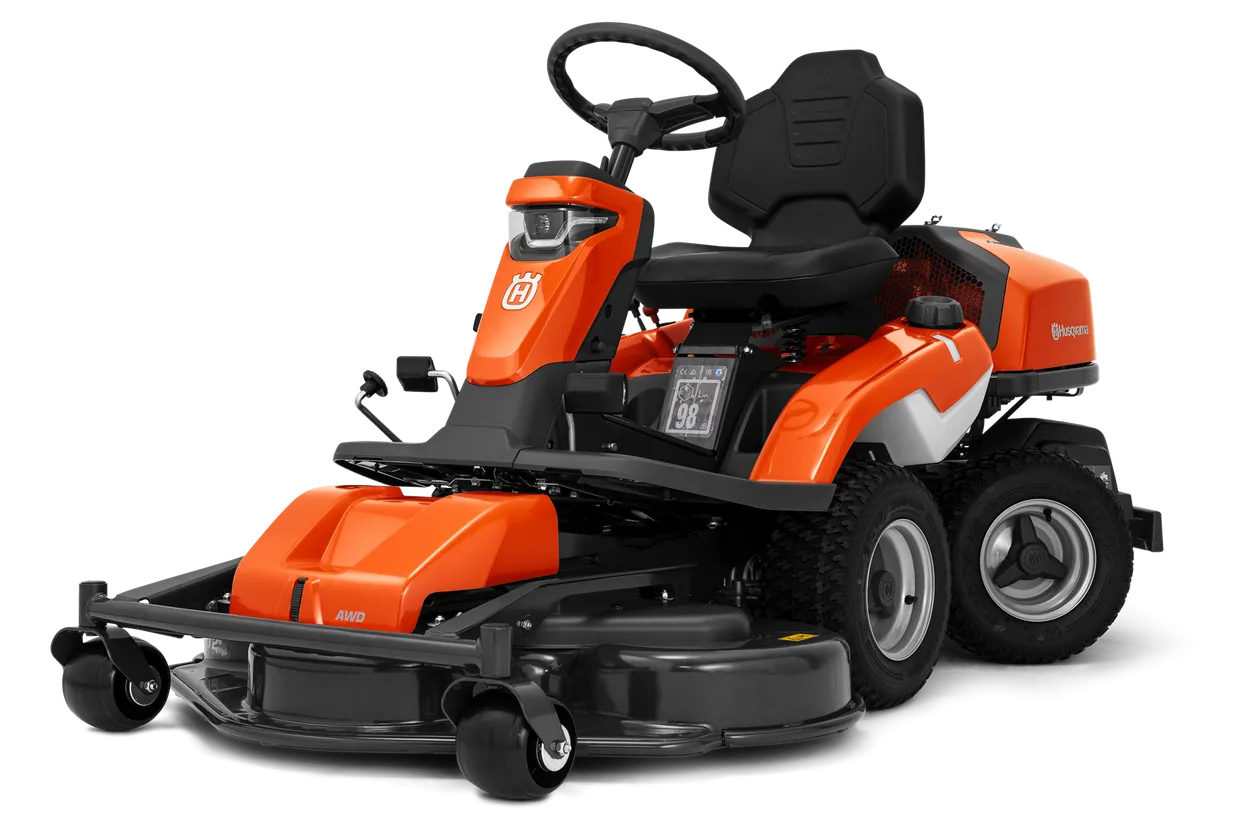

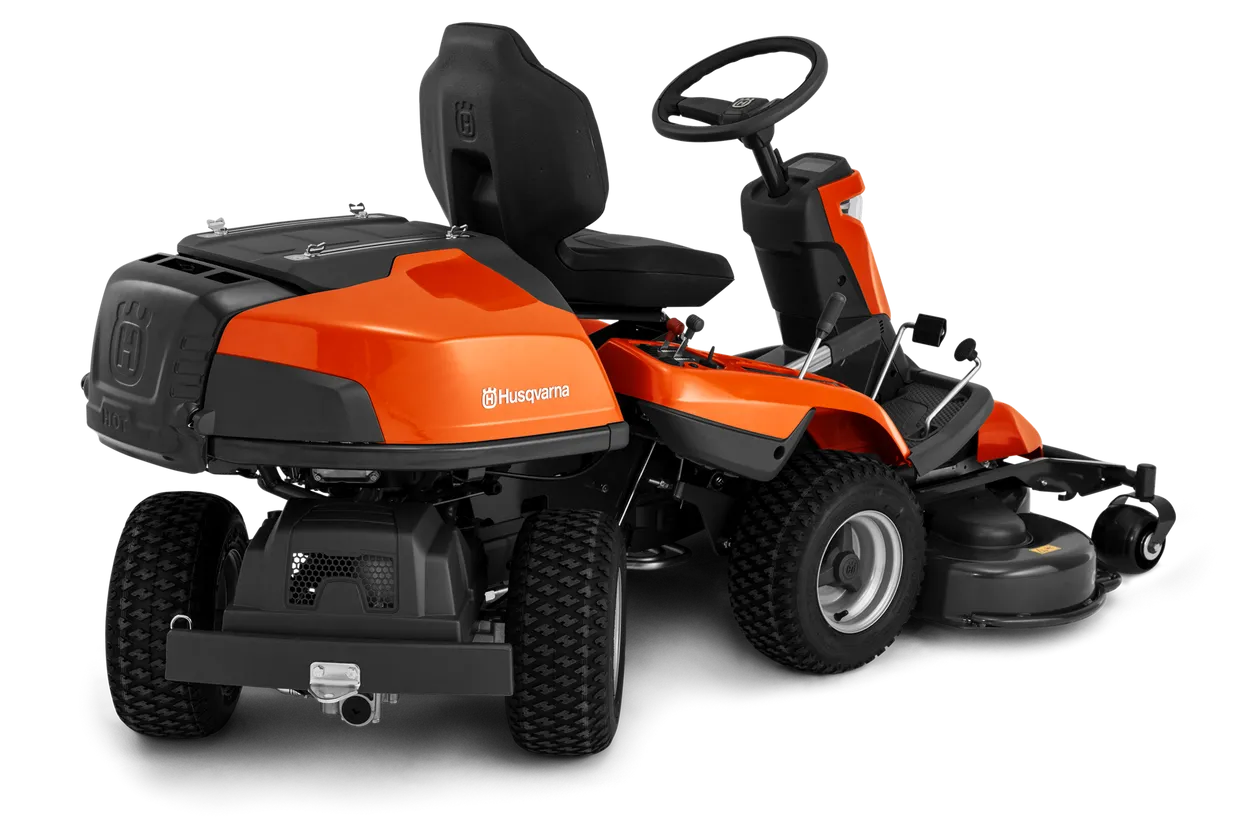

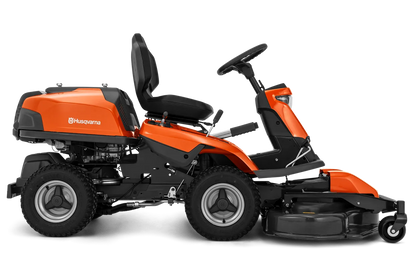

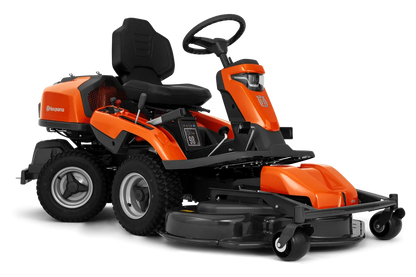

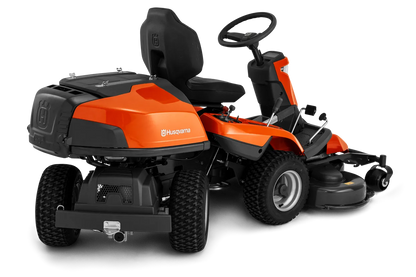

TEMP BUNDLE EXCEPTION AU/NZ ONLY- Bundle contains of: 970542901 (R316TX Rider), 967152401 COMBI 103 CUTTING DECK)

Art no: 970 54 27‑10

Power/fuel type

Petrol

Net power at preset rpm Energy

9.6 kW

Net power at preset rpm

2,900 rpm

Engine brand

Kawasaki

Motor/engine manufacturer

Kawasaki

Engine name

FS481V

Cylinder displacement

603 cm³

Cylinders

2

Engine cooling

Air

Engine lubrication type

Full pressure

Oil filter

Yes

Emission

Exhaust emissions (CO₂ EU V)

851 g/kWh

Battery

Battery capacity

24 Ah

Battery type

Lead-Acid

Battery pack weight

7.2 kg

Battery manufacturer

Global

Cutting deck

Uncut circle

30 cm

Cutting width, min

94 cm

Cutting width, max

112 cm

Cutting height min

25 mm

Cutting height max

75 mm

Blade engagement

Automatic

Dimensions

Tyre dimensions, front

170/60-8

Tyre dimensions, rear

170/60-8

Wheelbase

88.7 cm

Ground clearance

120 mm

Base machine, length

204.4 cm

Base machine, width

88.3 cm

Base machine, height

118.1 cm

Gross weight towed

³

125 kg

Weight (excl. cutting equipment)

240 kg

Drive system

PTO (Power Take Off)

Belt Drive

Transmission type

Hydrostatic

Drive method

Dual pedal-operation

Speed forward max

9 km/h

Speed reverse max

8 km/h

Equipment

Seat suspension

Yes

Seat type

Premium

Hour meter type

Digital

Seat material

Vinyl

Seat back height

High

Foldable seat

Yes

Steering wheel type

Ergonomic - soft grip

Parking brake, type

Disc

Vibration

Vibration level steering wheel

2.5 m/s²

Vibration level seat

0.7 m/s²

Sound and noise

Sound pressure level at operators ear

86 dB(A)

Sound power level, guaranteed (LWA)

98 dB(A)

Sound power level, measured

97 dB(A)
