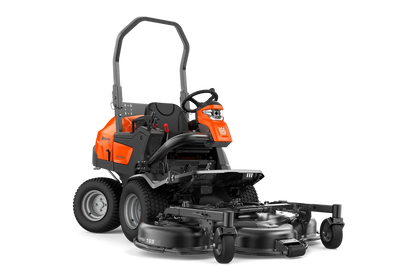

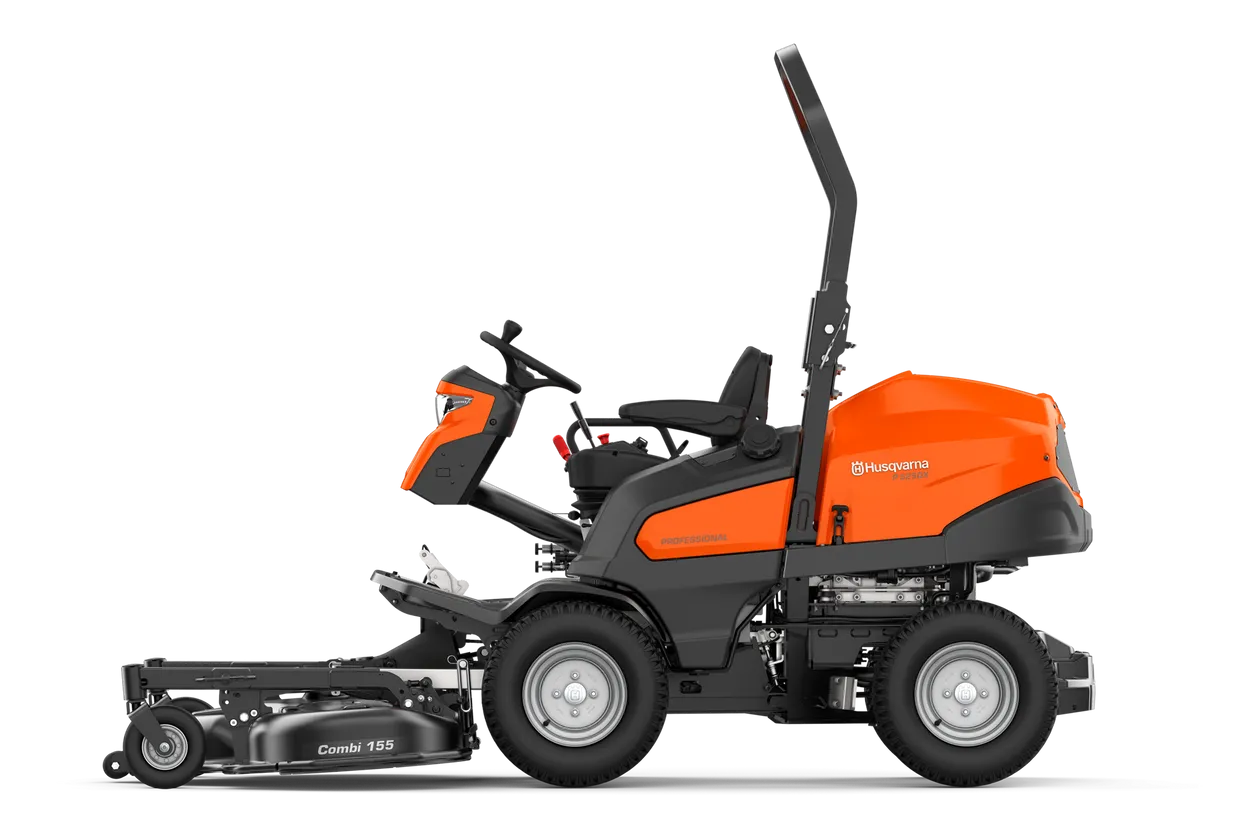

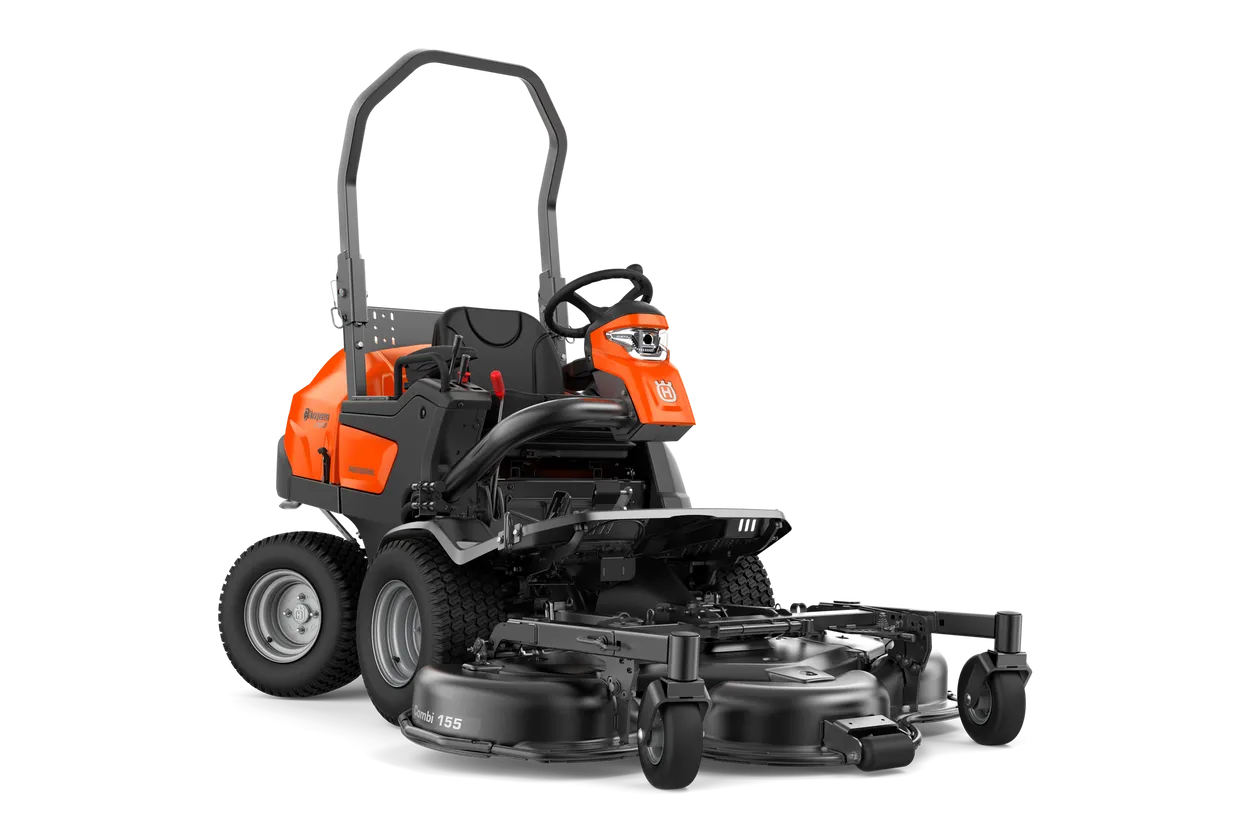

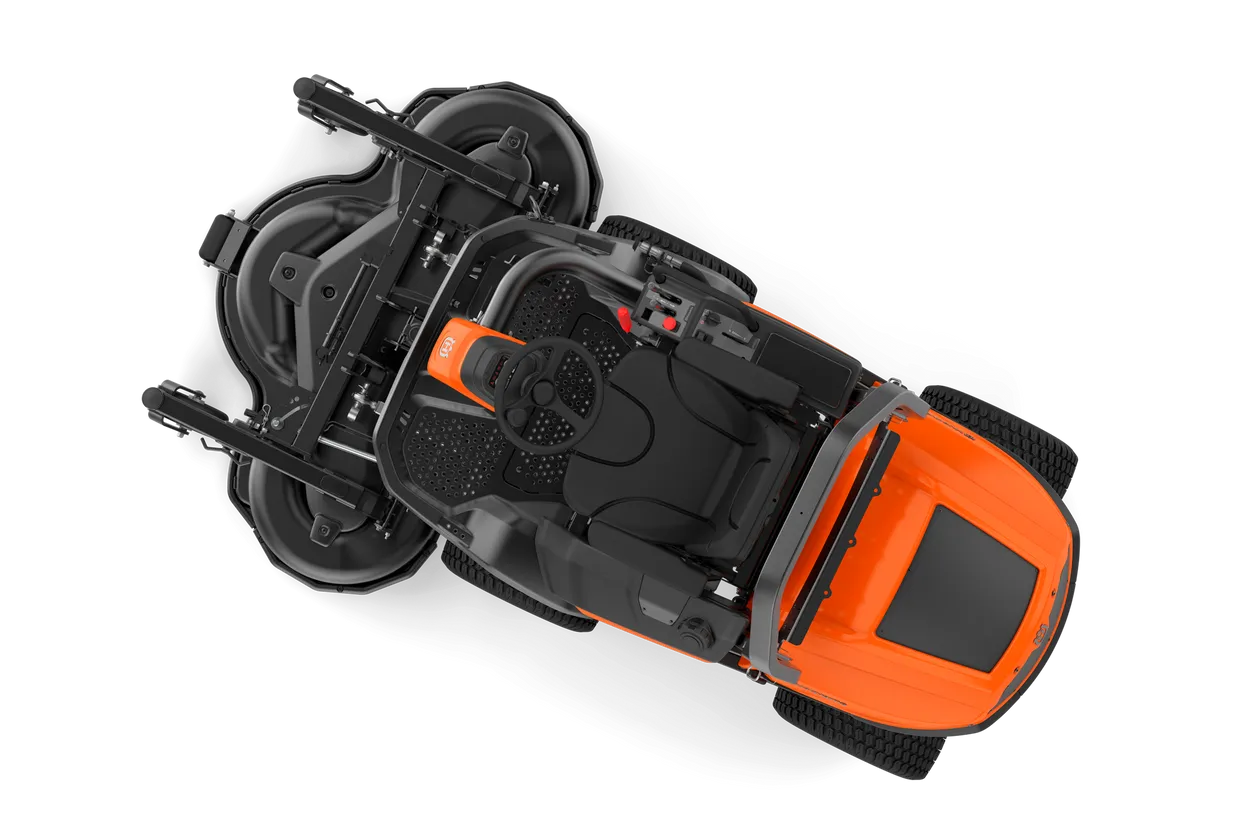

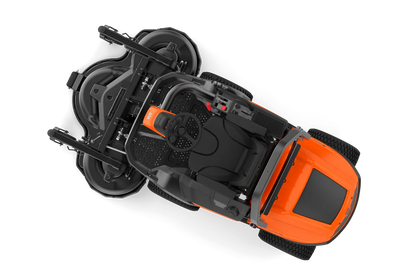

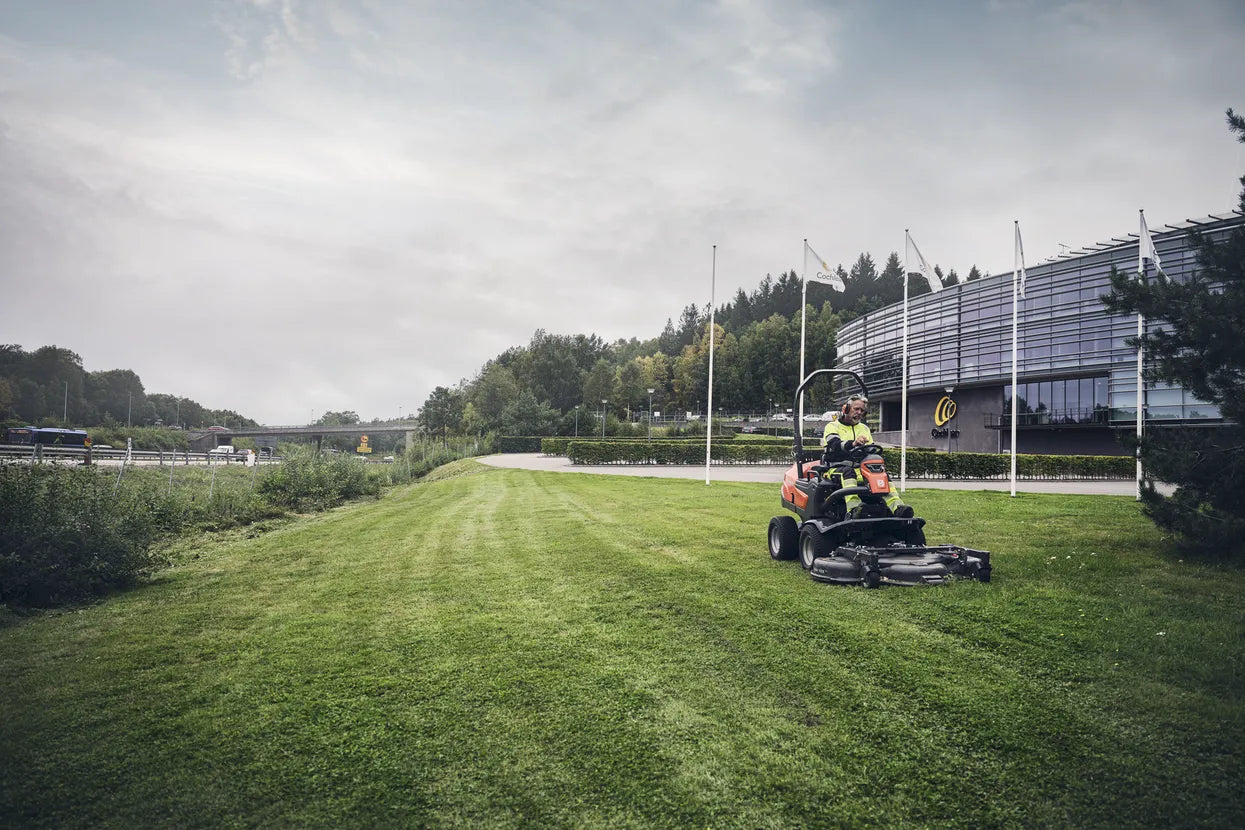

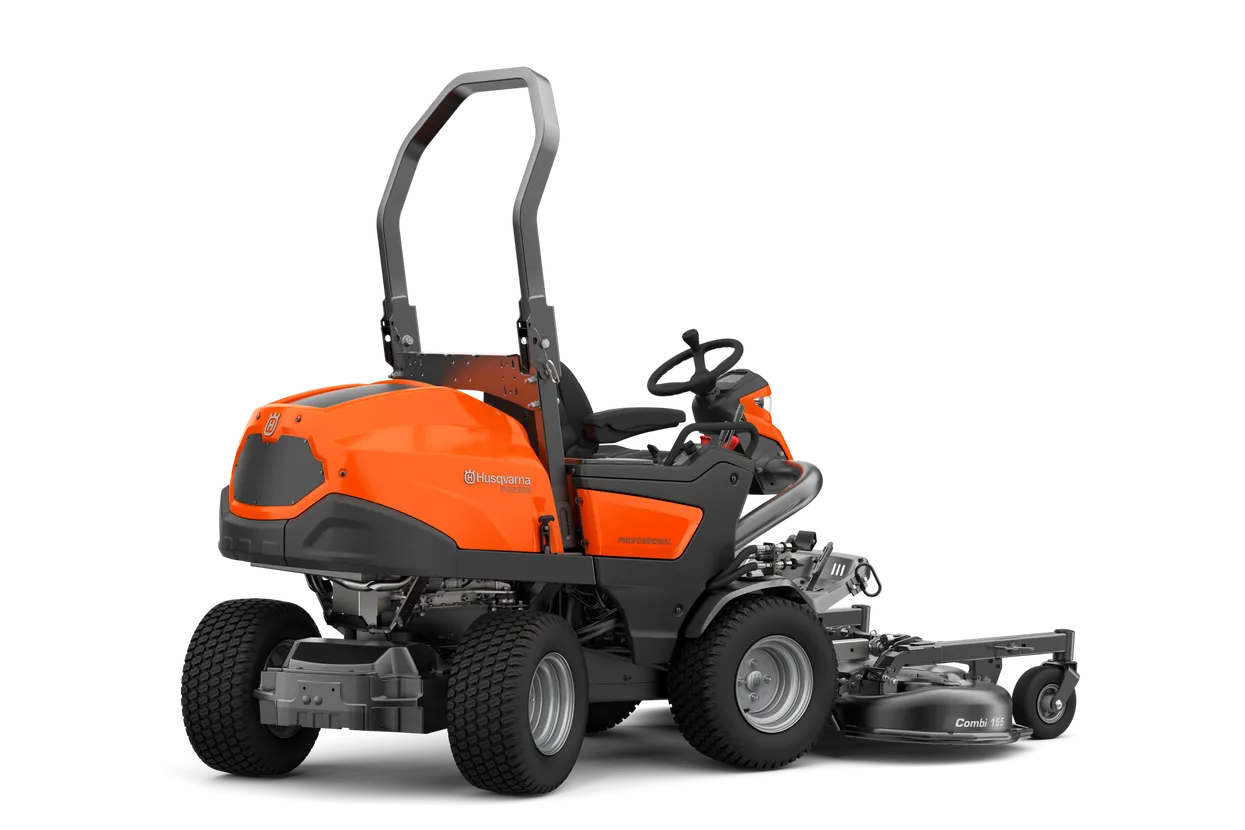

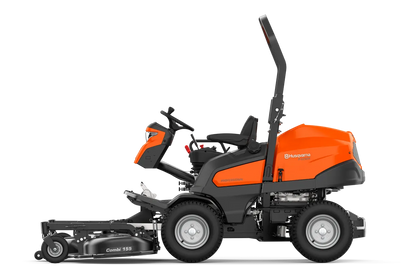

High-capacity diesel-powered front mower offering unbeatable manoeuvrability and productivity in complex and narrow environments as well as in larger-sized areas. The commercial graded transmission gives uncompromised traction and slope stability. The machine's compact size and high transport speed makes it suitable both for stationary and mobile application for municipalities, contractors, housing agencies etc. Thanks to the front-mounted cutting deck the operator has perfect overview of the working area. This means optimised trimming ability as well as accessibility under benches, bushes etc. Long-life components for solid durability and less downtime. Attachments such as utility bucket and broom give increased productivity all-year round. Price includes Combi deck 155cm. Combi deck 132cm also available via special order only. CTP155 967 97 84-01 Combi Deck 155cm Suits P525D / P525DX $7000.00
Engine
P 525DX 2021-
Art no: 967 98 53‑01
Power/fuel type
Diesel
Net power at preset rpm Energy
17.8 kW
Net power at preset rpm
3,000 rpm
Engine brand
Kubota
Motor/engine manufacturer
Kubota
Engine name
D1105
Cylinder displacement
1,123 cm³
Cylinders
3
Engine cooling
Liquid
Engine lubrication type
Pressure with Oilfilter
Oil filter
Yes
Emission
Exhaust emissions (CO₂ EU V)
1,018 g/kWh
Battery
Battery capacity
62 Ah
Battery type
Lead-Acid
Battery pack weight
14 kg
Battery manufacturer
Exide
Cutting deck
Uncut circle
58 cm
Cutting width, min
132 cm
Cutting width, max
155 cm
Cutting height min
30 mm
Cutting height max
112 mm
Blade engagement
Electric clutch
Dimensions
Tyre dimensions, front
20x10-10
Tyre dimensions, rear
20x10-10
Wheelbase
106 cm
Ground clearance
140 mm
Base machine, length
207.8 cm
Base machine, width
115.3 cm
Base machine, height
133 cm
Gross weight towed
350 kg
Weight (excl. cutting equipment)
684 kg
Drive system
PTO (Power Take Off)
Shaft drive
Transmission type
Hydrostatic
Transmission manufacturer, rear
Kanzaki
Drive method
Dual pedal-operation
Speed forward max
19 km/h
Speed reverse max
15 km/h
Transmission manufacturer, front
Kanzaki
Transmission model, front
KTM 23LC
Transmission model, rear
KTM 23SC
Equipment
Seat suspension
Yes
Seat type
Full suspension, arm rests
Hour meter type
Digital
Seat material
Vinyl
Seat back height
High
Foldable seat
Yes
Steering wheel type
Professional
Parking brake, type
Disc
Vibration
Vibration level steering wheel
1.7 m/s²
Vibration level seat
0.7 m/s²
Sound and noise
Sound pressure level at operators ear
91 dB(A)
Sound power level, guaranteed (LWA)
105 dB(A)
Sound power level, measured
104 dB(A)
This Item is available only by special order. Please send us a message via our Contact form or call us at (03) 5134 8899
