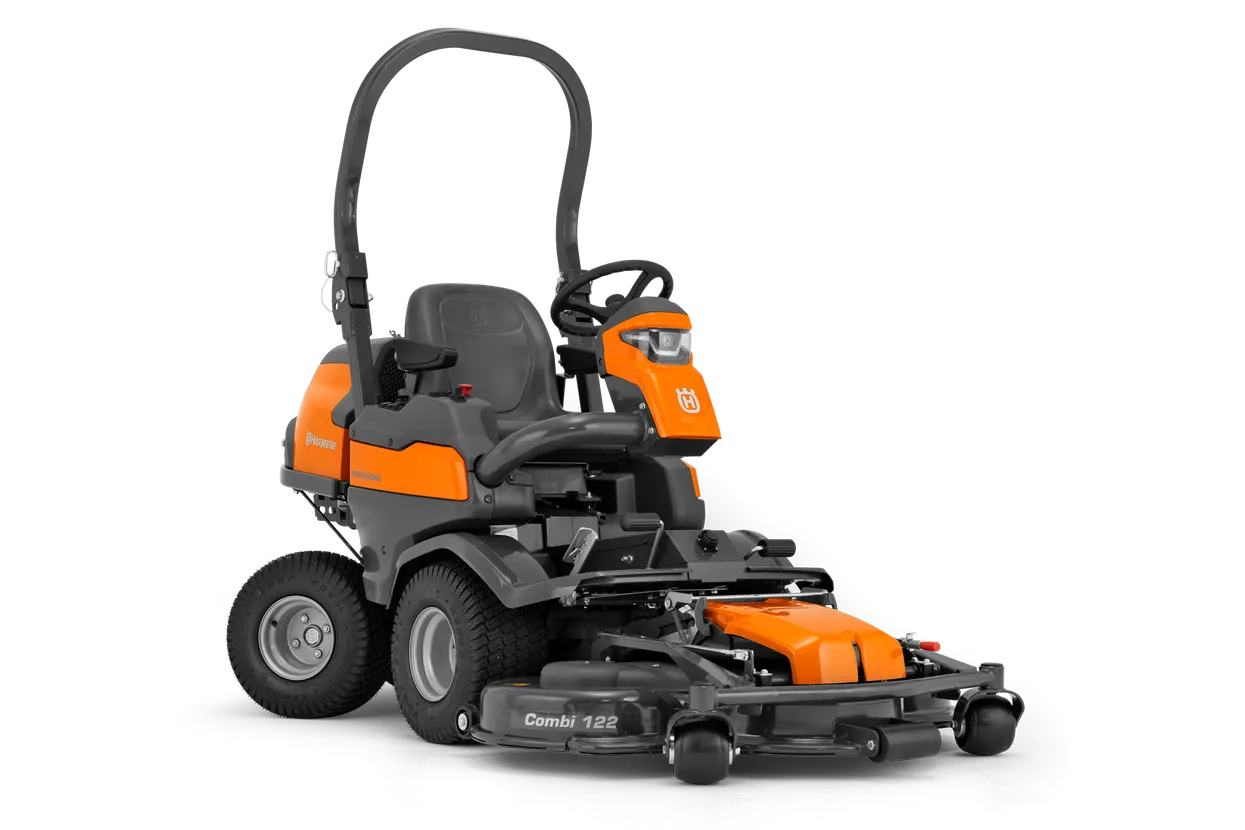

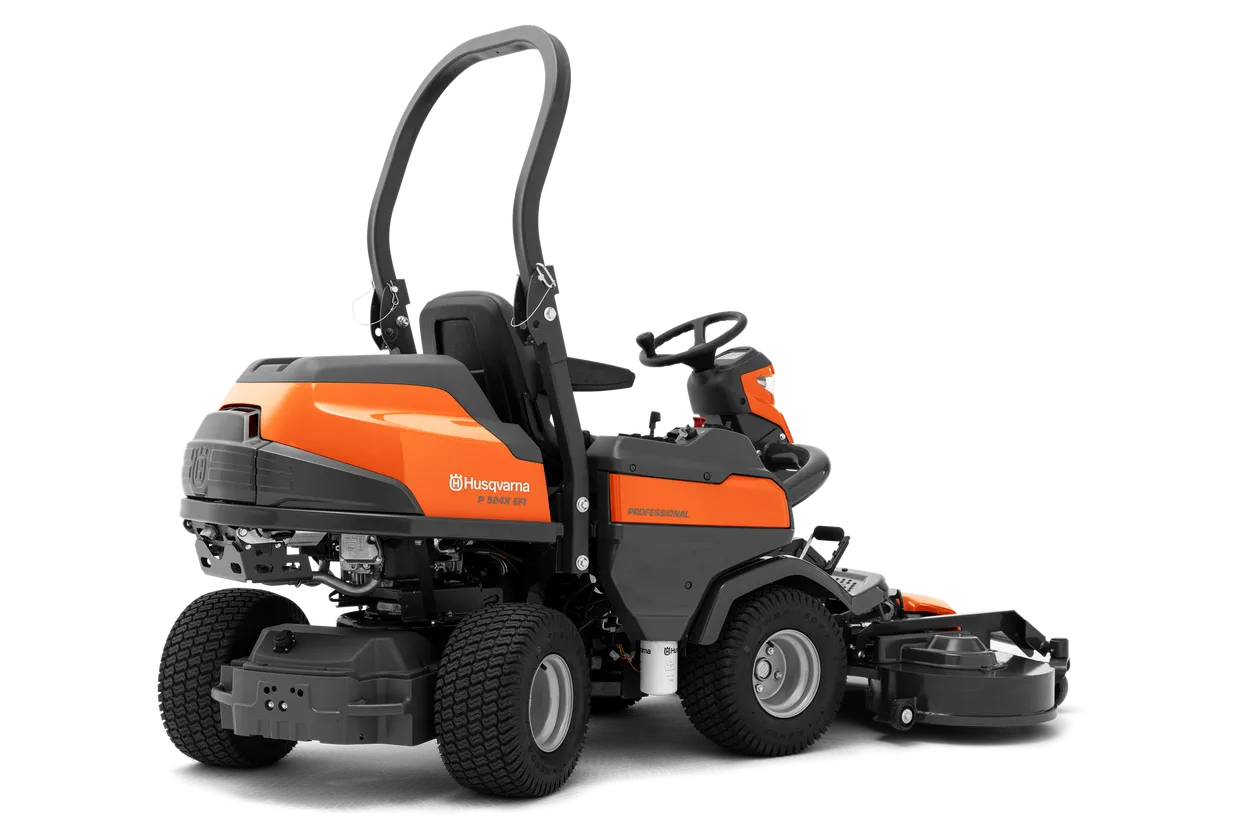

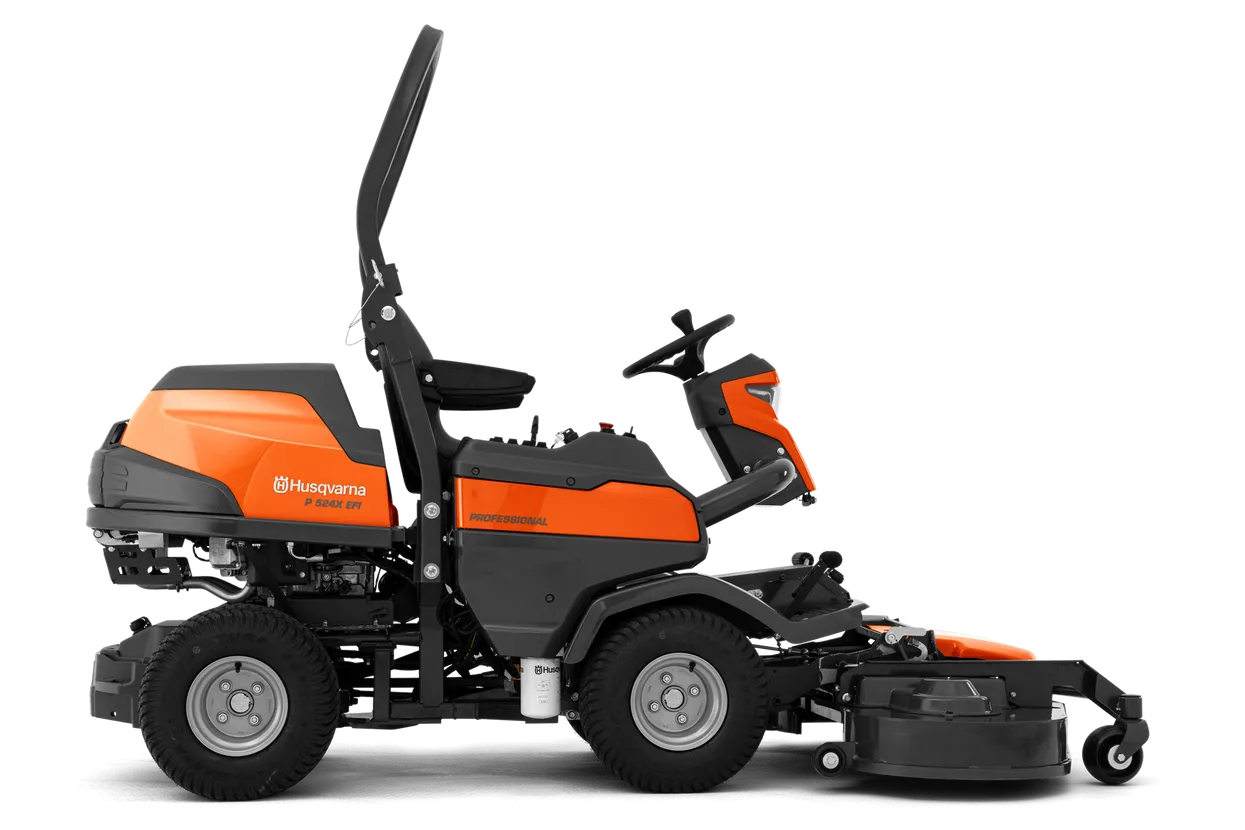

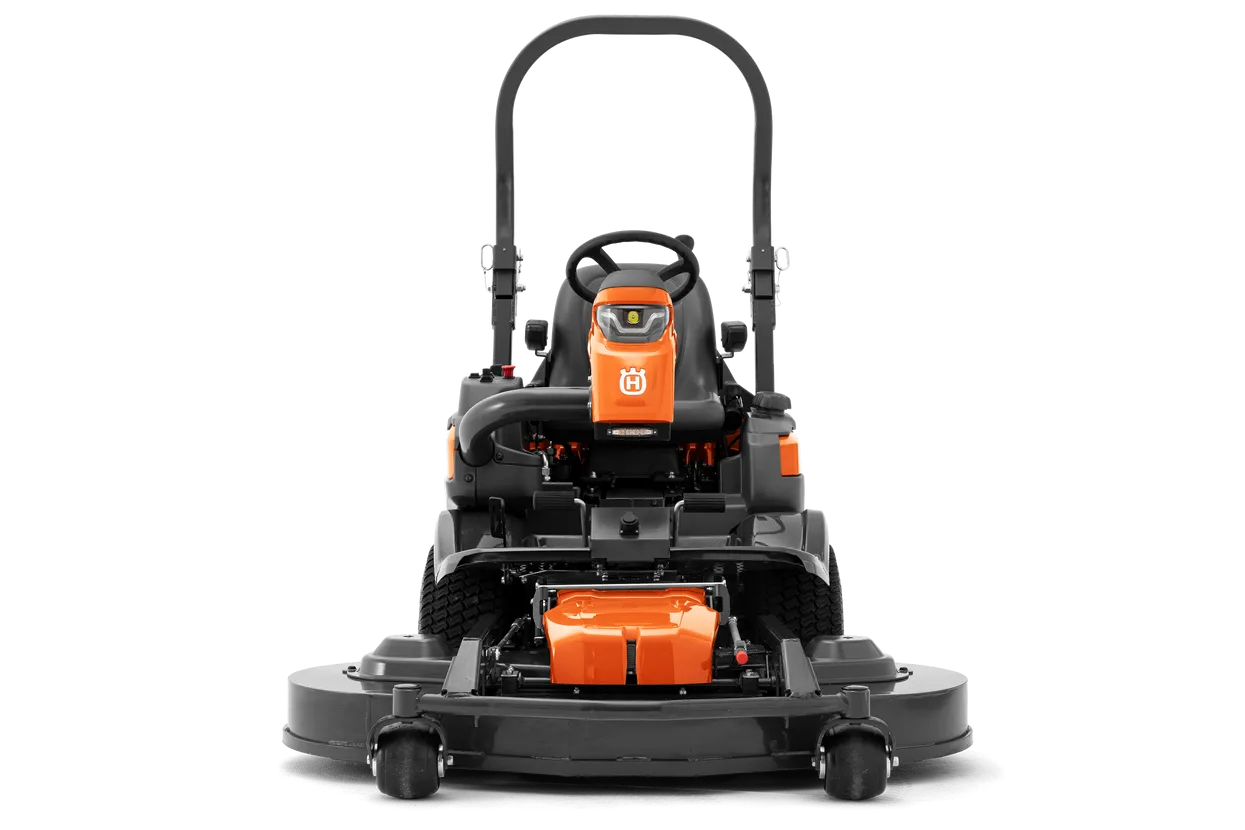

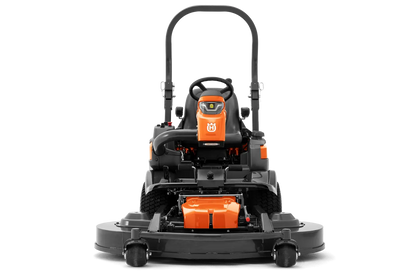

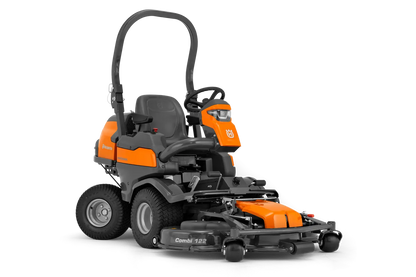

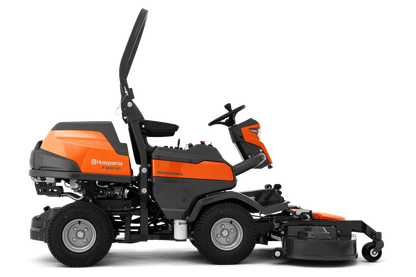

Husqvarna P524X Ride On Mower
Compact and efficient All-Wheel-Drive front mower for year-round maintenance in complex and narrow areas. Suitable for sport clubs and hotels as well as housing agencies and contractors who want a versatile, compact front mower that is highly manoeuvrable. Thanks to the front-mounted cutting deck the operator has a perfect overview of the working area. This means optimised trimming ability as well as accessibility under benches, bushes etc. Increased durability through long-life components. Attachments such as flail mower and broom give increased productivity all-year round. *The P 524 is delivered deckless and can be fitted with 112 and 122 cm Combi cutting decks. Snow thrower, folding plough & snow blade attachments not available in AU/NZ markets. *Decks supplied at additional cost. CTP122X 970 62 63-01 Combi Deck 122cm Suits P524X 3,599.00
|
Engine |
P 524X RIDER P 524X (2023-) Art no: 970 60 15‑01 |
|
Power/fuel type |
Petrol |
|
Net power at preset rpm Energy |
13.9 kW |
|
Net power at preset rpm |
3,000 rpm |
|
Engine brand |
Kawasaki |
|
Motor/engine manufacturer |
Kawasaki |
|
Engine name |
FX Series V-Twin |
|
Cylinder displacement |
726 cm³ |
|
Cylinders |
2 |
|
Engine cooling |
Air |
|
Engine lubrication type |
Full pressure with oil filter |
|
Oil filter |
Yes |
|
Emission |
|
|
Exhaust emissions (CO₂ EU V) |
792 g/kWh |
|
Battery |
|
|
Battery capacity |
24 Ah |
|
Battery type |
Lead-Acid |
|
Battery pack weight |
7.2 kg |
|
Battery manufacturer |
Global |
|
Cutting deck |
|
|
Uncut circle |
50 cm |
|
Cutting width, min |
112 cm |
|
Cutting width, max |
122 cm |
|
Cutting height min |
25 mm |
|
Cutting height max |
75 mm |
|
Blade engagement |
Electric clutch |
|
Dimensions |
|
|
Tyre dimensions, front |
18x8,5-8 |
|
Tyre dimensions, rear |
18x8,5-8 |
|
Wheelbase |
100 cm |
|
Ground clearance |
130 mm |
|
Base machine, length |
206 cm |
|
Base machine, width |
98 cm |
|
Base machine, height |
122 cm |
|
Gross weight towed 3 |
200 kg |
|
Weight (excl. cutting equipment) |
433 kg |
|
Drive system |
|
|
PTO (Power Take Off) |
Belt-driven |
|
Transmission type |
Hydrostatic |
|
Transmission manufacturer, rear |
Kanzaki |
|
Drive method |
Dual pedal-operation |
|
Speed forward max |
13 km/h |
|
Speed reverse max |
9 km/h |
|
Transmission manufacturer, front |
Kanzaki |
|
Transmission model, front |
KTM 23LB |
|
Transmission model, rear |
KTM 23SB |
|
Equipment |
|
|
Seat suspension |
Yes |
|
Seat type |
Professional |
|
Hour meter type |
Digital |
|
Seat material |
Vinyl |
|
Seat back height |
High |
|
Foldable seat |
Yes |
|
Steering wheel type |
Professional |
|
Parking brake, type |
Disc |
|
Vibration |
|
|
Vibration level steering wheel |
2.5 m/s² |
|
Vibration level seat |
0.5 m/s² |
|
Sound and noise |
|
|
Sound pressure level at operators ear |
90 dB(A) |
|
Sound power level, guaranteed (LWA) |
105 dB(A) |
|
Sound power level, measured |
104 dB(A) |
This Item is available only by special order. Please send us a message via our Contact form or call us at (03) 5134 8899
