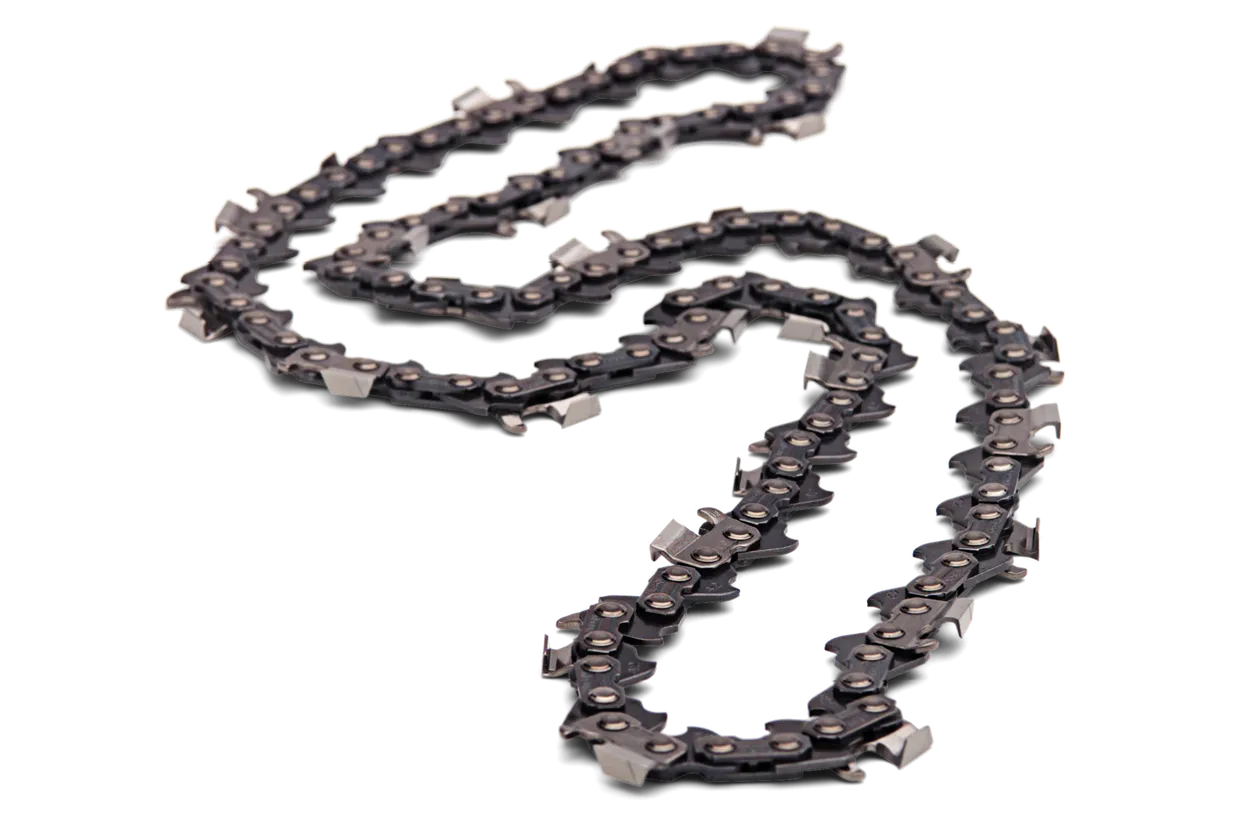

Husqvarna Chain Loop .404" .063" Chisel

A high-performance, big-timber chain with square-corner "chisel" cutters for high-production cutting of clean wood.

Product Data	Chain Loop .404" .063" Chisel H57-122DL Art no: 510 09 43‑01	Chain Loop .404" .063" Chisel H57 104DL Art no: 501 84 34‑04	Chain Loop .404" .063" Chisel H57 65DL Art no: 501 84 34‑65
Pitch	.404"	.404"	.404"
Gauge	1.6 mm	1.6 mm	1.6 mm
Cutter profile	Chisel	Chisel	Chisel
PIXEL	No	No	No
Kickback reduction	Ramped depth gauge	Ramped depth gauge	Ramped depth gauge
Bar length (inch)			20 in
Bar length			50 cm
Drive links		104	65

Product Data	Chain Loop .404" .063" Chisel H57 76DL Art no: 501 84 34‑76	Chain Loop .404" .063" Chisel H57 95DL Art no: 501 84 34‑95	Chain Reel .404" .063" Chisel H57 100 ft Reel Art no: 503 30 77‑01
Pitch	.404"	.404"	.404"
Gauge	1.6 mm	1.6 mm	1.6 mm
Cutter profile	Chisel	Chisel	Chisel
PIXEL	No	No	No
Kickback reduction	Ramped depth gauge	Ramped depth gauge	Ramped depth gauge
Bar length (inch)	24 in	32 in
Bar length	60 cm	80 cm
Drive links	76	95

Product Data	Chain Reel .404" .063" Chisel H57 25 ft Reel Art no: 503 30 77‑25	Chain Loop .404" .063" Chisel H57 84DL Art no: 510 09 41‑01
Pitch	.404"	.404"
Gauge	1.6 mm	1.6 mm
Cutter profile	Chisel	Chisel
PIXEL	No	No
Kickback reduction	Ramped depth gauge	Ramped depth gauge
Bar length (inch)
Bar length
Drive links		84
